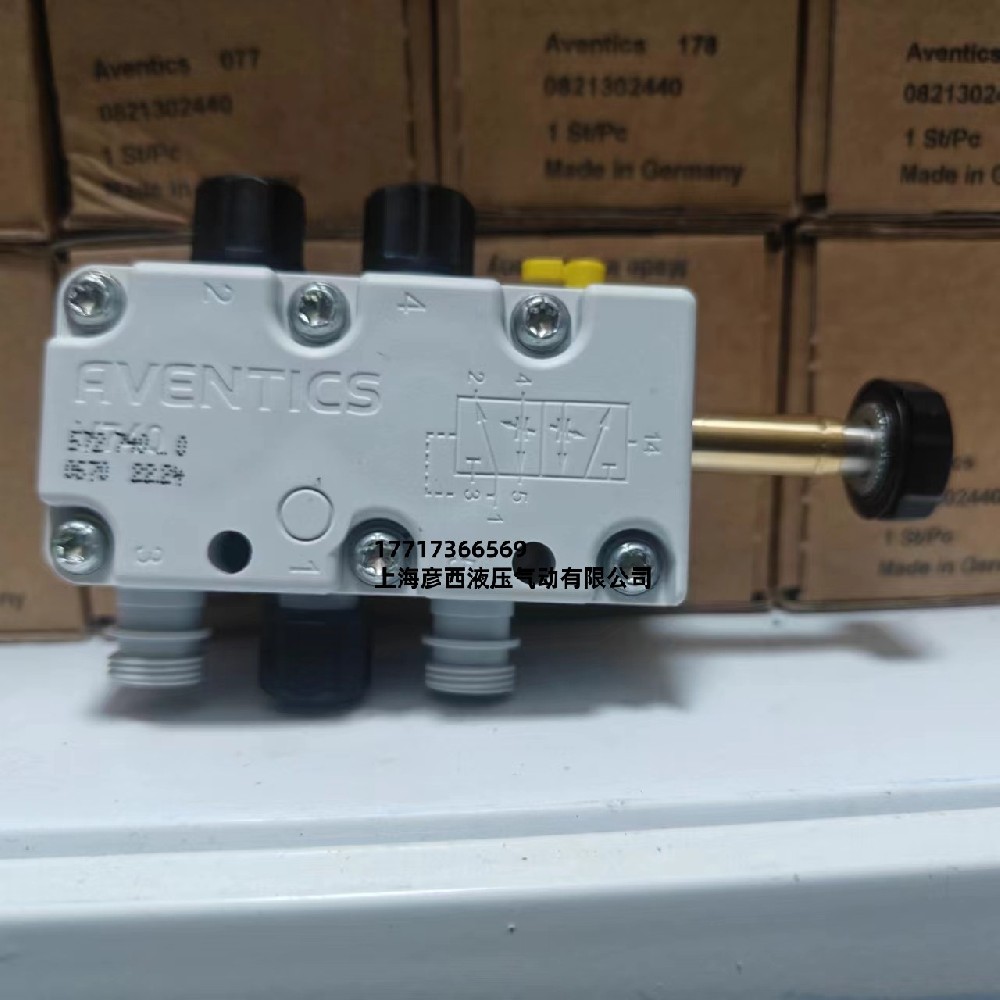

AVENTICS 5727405302 二位五通換向閥, 系列 740

規格

操作電子

額定流量Qn700 l/min

換向原理5/2

壓縮空氣 接口 出口? 8x1

最小運行壓力1.5 bar

最大運行壓力10 bar

手動控制裝置按鈕式, 鎖定式

電氣連接 類型多芯插頭

電氣連接 尺寸EN 175301-803, A型

密封原理軟密封

先導內部

ATEXATEX 中可選

閥門結構形式膜片式中心閥

帶有導線盒的基礎閥門不帶線圈的基閥

節流帶節流設備

連接類型管式連接

復位裝置帶空氣彈簧復位

組合原理?（閉鎖原理）單重底板原理, 盤式原理

可以組裝成塊可以組裝成塊

抗溫性-25 °C 耐低溫

最低環境溫度-25 °C

最高環境溫度50 °C

介質溫度最小值-25 °C

介質溫度最大值50 °C

介質壓縮空氣

5717400000 PNEUM-VALVE V740-5/2AR-07

5717400002 SPARE PART KIT V740

5717410000 V740-5/2DP-07

5717410002 SPARE PART KIT V740

5717450000 V740-5/2AS-07

5717451000 V740-5/2AS-07-CP

5717460000 V740-5/2DP-07

5717461000 V740-5/2DP-07-CP

5727400002 SPARE PART KIT V740

5727400210 V740-5/2AR-D8X1-MO-12VCC

5727400220 V740-5/2AR-024DC-07

5727400420 V740-5/2AR-024DC-07

5727400990 V740-5/2AS-DI04-024DC-04-MODI

5727405220 V740-5/2AR 24V50/60HZ

5727405270 V740-5/2AR-110AC-07

5727405280 V740-5/2AR-230AC-07

5727405302 V740-5/2AS-00000-07

5727405420 V740-5/2AR 24V-AC

5727405470 V740-5/2AR-110AC-07

5727405480 V740-5/2AR-230AC-07

5727406012 BLANK FLANGE V740

5727407904 OPERATION V740-PLUG-MAN-O-RIDE

5727410002 SPARE PART KIT V740

5727410220 V740-5/2DS-024DC-07

5727410420 V740-5/2DS-024DC-07

5727415270 V740-5/2DS-110AC-07

5727415280 V740-5/2DS-230AC-07

5727415302 V740-5/2DS-00000-07

5727415480 V740-5/2DS-230AC-07

5727420220 V740-5/2AR-024DC-07

5727440220 V740-5/2DS-024DC-07

5727450220 V740-5/2AR-024DC-07

5727450420 V740-5/2AR-024DC-07

5727455220 V740-5/2AR 24V50/60HZ

5727455270 V740-5/2AR-110AC-07

5727455280 V740-5/2AR-230AC-07

5727455302 V740-5/2AS-00000-07

5727455420 V740-5/2AR 24V-AC-07

5727455470 V740-5/2AR 110V-AC-07

5727455480 V740-5/2AR-230AC-07

5727460220 V740-5/2DS-024DC-07

5727460420 V740-5/2DS-024DC-07

5727465270 V740-5/2DS-110AC-07

5727465280 V740-5/2DS-230AC-07

5727465302 V740-5/2DS-00000-07

5727465480 V740-5/2DS-230AC-07

5727470220 V740-5/2AR-024DC-07

5727475280 V740-5/2AR-230AC-07

5727475302 V740-5/2AS-00000-07

5727480220 V740-5/2DS-024DC-07

5727485280 V740-5/2DS-230DC-07

5727485302 V740-5/2DS-00000-07

5727490220 V740-5/2AR-024DC-07-MODI

5727495270 V740-5/2AR-110AC-07-MODI

5727500220 V740-5/4CC-DI06-024DC-07

5727500420 V740-5/4CC-DI06-024DC-07

5727505280 V740-5/4CC-DI06-230AC-07

5727505302 V740-5/4CC-DI06-NONE-07-BASIC

5727510220 V740-5/4CC-DI06-024DC-07

5727515270 V740-5/4CC-DI06-110AC-07

5727515280 V740-5/4CC-DI06-230AC-07

5727515302 V740-5/4CC-DI06-NONE-07-BASIC

5727520220 V740-5/4EC-DI06-024DC-07

5727525270 V740-5/4EC-DI06-110AC-07

5727525280 V740-5/4EC-DI06-230AC-07

5727525302 V740-5/4EC-DI06-NONE-07-BASIC

5727550220 V740-5/4CC-DI08-024DC-07

5727555280 V740-5/4CC-DI08-230AC-07

5727555302 V740-5/4CC-DI08-NONE-07-BASIC

5727560220 V740-5/4CC-DI08-024DC-07

5727560920 V740-5/4CC-DA10-024DC-07-MODI

5727565280 V740-5/4CC-DI08-230AC-07

5727565302 V740-5/4CC-DI08-NONE-07-BASIC

5727650220 V740-5/4CC-DI08-024DC-07-MODI-CP

5727790220 V740-5/2AR-024DC-07-MODI

5727800920 V740-5/2-024DC-07-MODI-CP

5727820920 V740-5/4CC-DI08-024DC-07-MODI

5727830220 V740-5/4CC-DI06-024DC-07

5727835302 V740-5/4CC-DI06-NONE-07-BASIC

5727840220 V740-5/4CC-DI08-024DC-07

5727850220 V740-5/4CC-DI06-024DC-07

5727850420 V740-5/4CC-DI06-024DC-07

5727855302 V740-5/4CC-DI06-NONE-07-BASIC

5727920220 V740-5/2DS-024DC-07-CP

5727925280 V740-5/2DS-230AC-07-CP

5727925302 V740-5/2DS-00000-07

5727940220 V740-5/2AS-024DC-07-CP

5727940920 V740-5/2AS-DA10-024DC-07-MODI

5727945280 V740-5/2AS-230AC-07-CP

5727945302 V740-5/2AS-00000-07

5727945312 V740-5/2AS-DA10-NONE-07-MODI

5727970220 V740-5/2AS-DI06-024DC-07-MODI-CP

5727975280 V740-5/2AS-DI06-230AC-07-MODI-CP

5727975302 V740-5/2AS-00000-07-MODI-CP

5727980220 V740-5/2AS-DI08-024DC-07-MODI

5727980920 V740-5/2AS-DI08-024DC-07-MODI

5727985302 V740-5/2AS-DI08-NONE-07-BASIC-MODI

8913505604 THROTTLE SCREW V740

8963206604 SPRING WASHER V740-F/5/2

8985000802 CONNECTION PLATE V740

8985000812 END PLATE V740

8985000822 INTERMEDIATE PLATE V740

8985003902 PLATE V740-INPUT

8985003922 INTERMEDIATE PLATE V740

8985003972 PLATE V740-INPUT-V2A BUSH

R412009671 V740-5/2DS-00000-07-BV

R412009690 V740-5/2AR-00000-07-BV

R412015930 COVER V740-5/2AS

R415001602 CYL-VALVE-UNIT RPC-DA-032-0050+V740&

R415006569 CYLINDER ASSEMBLY TRB-DA-050-0300+V740&

R415010533 CYL-VALVE-UNIT PRA D63X320,V740SR10

R416004364 ASSEMBLY KIT V740-5/2AS-24-07 KOMP

R416004365 ASSEMBLY KIT V740-5/2AS-230AC KOMP

R416004366 ASSEMBLY KIT V740-5/2DS-24-07 KOMP

R432002436 V740-5/2SS-L/COIL

R432002437 V740-5/2DS-L/COIL

R432002438 V740-5/3CC-DS-L/COIL

R432008442 V740-CP-DBL-INT-PLT-BLEEDER-OPER

R432008514 ASSEMBLY KIT V740-3/8OD-TUBE-NUT

R432008644 V740-5/3CC-110VAC-4.2VA-CR

R432008645 V740-5/3CC-24VDC-2.1W-CR

R432008759 ASSEMBLY KIT V740-END-COVER-WIREW&

R432008863 V740-5/3DS-OC-24VDC

R432008990 V740-5/2SS-110VAC-CR

R432008991 V740-5/2SS-24VDC-CR

R432013808 V740-5/2-SGL-AIR-PLT

R432013810 V740-5/2-DBL-AIR-PLT

R432013811 SEGMENT V740-MANIFOLD-PORT

R432013812 SEGMENT V740-MANIFOLD-END

R432013813 SEGMENT V740-MANIFOLD-INTERM&

R432013814 SUBASSEMBLY V740-DS-BODY

R432013816 SUBASSEMBLY V740-5/2SS-BODY

R432013839 ASSEMBLY KIT V740-MANIFOLD/VALVE &

R432013840 ASSEMBLY KIT V740-SOLENOID-110VAC&

R432013842 ASSEMBLY KIT V740-SOLENOID-12VDC

R432013843 ASSEMBLY KIT V740-SOLENOID-24VDC

R432013850 ASSEMBLY KIT V740-EXHAUST-MUFFLER

R432013852 ASSEMBLY KIT V740-SHEAR PLUG MANI&

R432013853 ASSEMBLY KIT V740-MANIFOLD-O-RING

R432013854 ASSEMBLY KIT V740-AIR-PLT-OPERATOR

R432013884 REPAIR KIT V740-SS-BODY

R432013885 REPAIR KIT V740-DS-BODY

R432015287 ASSEMBLY KIT V740-3/8OD-TUBE-NUT

R432015289 ASSEMBLY KIT V740-5/16OD-TUBE-NUT

R432015301 ASSEMBLY KIT V740-3/8-ELBOW FITTI&

R432015330 ASSEMBLY KIT V740-SPACER

R432015349 ASSEMBLY KIT V740-SOL-24VAC-50-6

R432015405 V740-5/2SS-10MM-BASIC

R432015407 ASSEMBLY KIT V740-10X1-TUBE-NUT

R432015410 V740-5/2-10MM-DBL-50-BASIC

R432015475 ASSEMBLY KIT V740-1/4OD-TUBE-REDU&

R432015479 FITTING V740-1/4-TUBE-ELBOW

R432015511 ASSEMBLY KIT V740-MANIFOLD-BLANKI&

R432015512 ASSEMBLY KIT V740-MANIFOLD-SUPPLY&

R432015513 ASSEMBLY KIT V740-EXHAUST-FITTING&

R432015525 FITTING V740-1/4-BARB

R432015526 ASSEMBLY KIT V740-DBL-ELBOW-3/8OD&

R432015527 ANGLE PIECE KIT-V740-1/4OD-TUBING

R432015590 V740-5/2SS-110VAC-CR

R432015591 V740-5/2SS-240VAC

R432015592 V740-5/2SS-12VDC-CR

R432015593 V740-5/2SS-24VDC-CR

R432015594 V740-5/2SS-24VAC-CR

R432015597 V740-5/2DS-110VAC-CR

R432015599 V740-5/2DS-24VDC-CR

R432015613 V740-5/2SS-110VAC-CR

R432015615 V740-5/2SS-24VDC-CR

R432015616 V740-5/2SS-24VAC-CR

R432015617 V740-5/2DS-110-120VAC-CR

R432015619 V740-5/2DS-24VDC-CR

R432015687 REPAIR KIT V740-SOLENOID

R432015689 ASSEMBLY KIT V740-1/4OD-TUBE-NUT

R432015880 ASSEMBLY KIT V740-SINGLE-STATION-&

R432016647 V740-5/2SS-110

R432016649 V740-5/2SS-24VDC-2POS

R432016650 V740-5/2SS-24VAC

R432016651 V740-5/2DS-110-120VAC

R432016653 V740-5/2DS-024

R432016655 V740-5/2SS-220

R432016656 V740-5/2SS-6VDC

R432016657 V740-5/2SS-012

R432016658 V740-5/2SS-024

R432016659 V740-5/2DS-110-120VAC

R432016660 V740-5/2DS-220-240VAC

R432016662 V740-5/2DS-012

R432016663 V740-5/2DS-024

R432016664 V740-5/2DS-024

R432016665 V740-5/3OC-DS-110

R432016668 V740-5/3OC-DS-024

R432016670 V740-5/3CC-DS-110

R432016671 V740-5/3CC-DS-220

R432016674 V740-5/3CC-DS-024

R432016675 V740-5/3CC-DS-024

R432034081 V740-5/2SS-12VDC-UL/CSA

R432037288 V740-5/4EC-D038-24VDC-MODI

R432038419 V740-5/2SS-110VAC-CURUS

R432038420 V740-5/2DS-110VAC-CURUS

R432038421 V740-5/3CC-110VAC-CURUS

R432038422 V740-5/3OC-110VAC-CURUS

R432038437 V740-5/2SS-24VDC-CURUS

R432038438 V740-5/2DS-24VDC-CURUS

R432038439 V740-5/3CC-24VDC-CURUS

R432038440 V740-5/3OC-24VDC-CURUS

R432039668 V740-5/2SS-CR-L/COIL-3/8

R434001342 V740-SS-24VDC-4WAY-2POS

R434001351 V740-SS-24VAC-CR

R434001849 V740-5/3OC-DS-24VDC-CR

R434001851 V740-5/2SS-12VDC-CR

R434001858 V740-5/3CC-DS-110VAC-CR

R434001860 V740-5/3OC-DS-110VAC-CR

R434001861 V740-5/2DS-24VDC-CR

R434001862 V740-5/2DS-110VAC-CR

R434001863 V740-5/2SS-24VDC-CR

R434001864 V740-5/2SS-110VAC-CR

R434001868 V740-5/3CC-DS-24VDC-CR

R434001870 V740-SS-24VDC-4WAY-2POS

R434001892 V740-5/2SS-24VDC-CURUS

R434001893 V740-5/2SS-110/120VAC-50/60HZ-CURUS

R434001962 V740-5/2SS-24VDC-CURUS

R434001963 V740-5/2SS-110/120VAC-50/60HZ-CURUS

R434003592 V740-SS-4WAY-2POS

R434004158 V740-5/2SS-12VDC-CR

R434004650 V740-5/2SS-110/120VAC-50/60HZ-CURUS

R434006672 MANIFOLD V740 END SEG MODIFIE&
