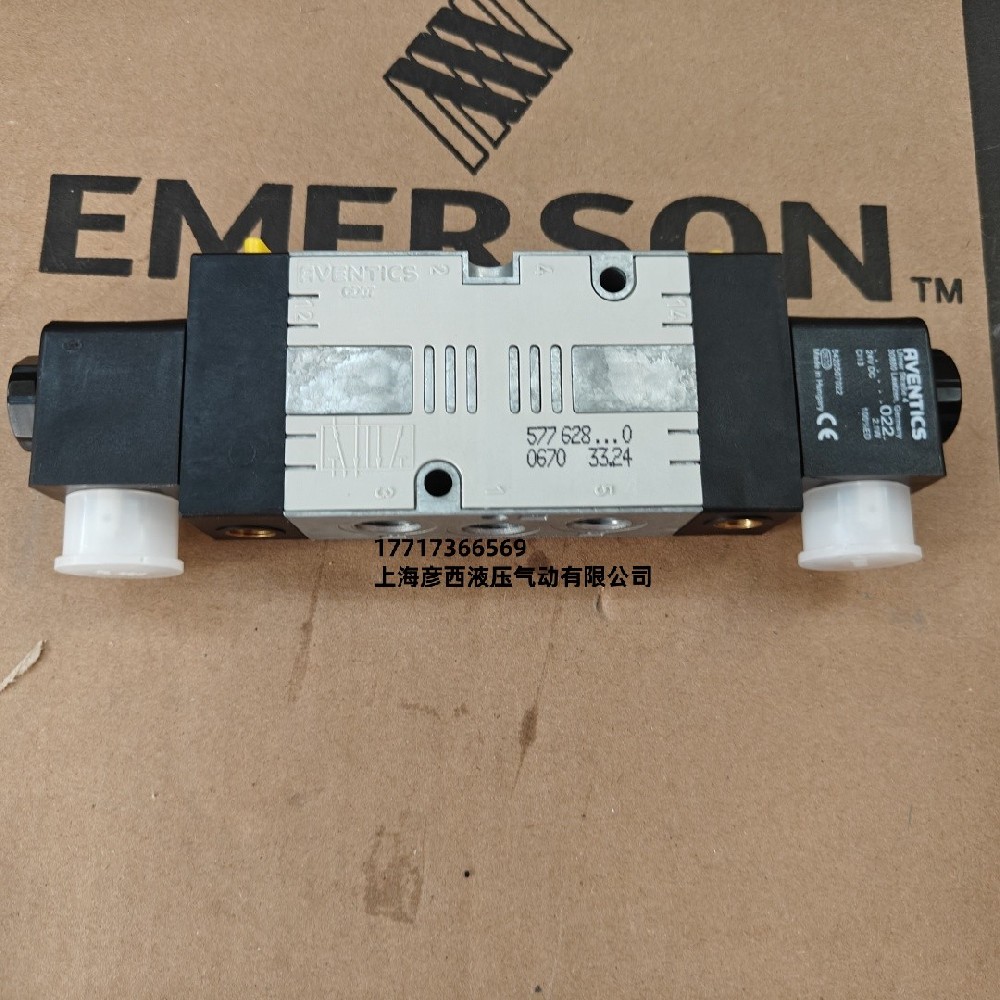

AVENTICS 二位五通換向閥 5776280220

規格

操作電子

尺寸CD07

換向原理5/2，雙側操作閥門

操作元件雙線圈

手動控制裝置鎖定式

先導外部的

額定流量Qn1200 l/min

壓縮空氣連接G 1/4

最小運行壓力-0.95 bar

最大運行壓力10 bar

額定電壓24 V DC

電壓偏差 DC-10% / +10%

電氣連接 類型多芯插頭

電氣連接 尺寸EN 175301-803, A型

標準化電路接口EN 175301-803:2006

帶接口的防護等級IP65

反向極性保護反極性保護

預控閥的寬度30 mm

兼容性目錄13, 14

暫載率100 %

接通時間型號21 ms

關閉時間型號21 ms

密封原理軟密封

最低環境溫度-25 °C

最高環境溫度50 °C

5772020002 SPARE PART KIT CD07-3/2-SR--25?°C

5772020220 CD07-3/2NC-SR-024DC-I-M014

5772020770 CD07-3/2NC-SR-110DC-I-M014

5772022220 CD07-3/2NC-SR-024DC-I-M014

5772025270 CD07-3/2NC-SR-110AC-I-M014

5772025280 CD07-3/2NC-SR-230AC-I-M014

5772025302 CD07-3/2NC-SR-NONE-I-M014

5772030220 CD07-3/2NC-SR-024DC-E-M014

5772035280 CD07-3/2NC-SR-230AC-E-M014

5772035302 CD07-3/2NC-SR-NONE-E-M014

5772070220 CD07-3/2NC-SR-024DC-I-G014

5772070970 CD07-3/2NC-G014-110DC-MODI

5772072220 CD07-3/2NC-SR-024DC-I-G014

5772075220 CD07-3/2NC-SR-024AC-I-G014

5772075270 CD07-3/2NC-SR-110AC-I-G014

5772075280 CD07-3/2NC-SR-230AC-I-G014

5772075302 CD07-3/2NC-SR-NONE-I-G014

5772079970 CD07-3/2NC-G014-110DC-MODI

5772079990 CD07-3/2NX-G014-024DC-MODI

5772080220 CD07-3/2NC-SR-024DC-E-G014

5772082220 CD07-3/2NC-SR-024DC-E-G014

5772085220 CD07-3/2NC-SR-024AC-E-G014

5772085270 CD07-3/2NC-SR-110AC-E-G014

5772085280 CD07-3/2NC-SR-230AC-E-G014

5772085302 CD07-3/2NC-SR-NONE-E-G014

5772960220 CD07-3/2NC-SR-024DC-I-G014

5772965302 CD07-3/2NC-SR-NONE-I-G014

5776020002 SPARE PART KIT CD07-5/2-SR--25?°C

5776020012 SPARE PART KIT CD07-5/2-DO--40?°C

5776020220 CD07-5/2XX-SR-024DC-I-M014

5776025270 CD07-5/2XX-SR-110AC-I-M014

5776025280 CD07-5/2XX-SR-230AC-I-M014

5776025302 CD07-5/2XX-SR-NONE-I-M014

5776030220 CD07-5/2XX-SR-024DC-E-M014

5776035280 CD07-5/2XX-SR-230AC-E-M014

5776035302 CD07-5/2XX-SR-NONE-E-M014

5776070220 CD07-5/2XX-SR-024DC-I-G014

5776070360 CD07-5/2XX-SR-096DC-I-G014

5776070720 CD07-5/2SR-G014-024DC-MODI

5776072220 CD07-5/2XX-SR-024DC-I-G014

5776075220 CD07-5/2XX-SR-024AC-I-G014

5776075270 CD07-5/2XX-SR-110AC-I-G014

5776075280 CD07-5/2XX-SR-230AC-I-G014

5776075302 CD07-5/2XX-SR-NONE-I-G014

5776080220 CD07-5/2XX-SR-024DC-E-G014

5776085220 CD07-5/2XX-SR-024AC-E-G014

5776085270 CD07-5/2XX-SR-110AC-E-G014

5776085280 CD07-5/2XX-SR-230AC-E-G014

5776085302 CD07-5/2XX-SR-NONE-E-G014

5776220002 SPARE PART KIT CD07-5/2-DO--25?°C

5776220220 CD07-5/2XX-DO-024DC-I-M014

5776225280 CD07-5/2XX-DO-230DC-I-M014

5776225302 CD07-5/2XX-DO-NONE-I-M014

5776230220 CD07-5/2XX-DO-024DC-E-M014

5776235280 CD07-5/2XX-DO-230AC-E-M014

5776235302 CD07-5/2XX-DO-NONE-E-M014

5776270220 CD07-5/2XX-DO-024DC-I-G014

5776270720 CD07-5/2DS-G014-024DC-MODI

5776270770 CD07-5/2DS-G014-110DC-MODI

5776270870 CD07-5/2DS-G014-110DC-MODI

5776272220 CD07-5/2XX-DO-024DC-I-G014

5776275220 CD07-5/2XX-DO-024AC-I-G014

5776275270 CD07-5/2XX-DO-110AC-I-G014

5776275280 CD07-5/2XX-DO-230AC-I-G014

5776275302 CD07-5/2XX-DO-NONE-I-G014

5776280220 CD07-5/2XX-DO-024DC-E-G014

5776285270 CD07-5/2XX-DO-110AC-E-G014

5776285280 CD07-5/2XX-DO-230AC-E-G014

5776285302 CD07-5/2XX-DO-NONE-E-G014

5776600220 CD07-5/2XX-SR-024DC-I-NAMU

5776605280 CD07-5/2XX-SR-230AC-I-NAMU

5776605302 CD07-5/2XX-SR-NONE-I-NAMU

5776620220 CD07-5/2XX-DO-024DC-I-NAMU

5776625280 CD07-5/2XX-DO-230AC-I-NAMU

5776625302 CD07-5/2XX-DO-NONE-I-NAMU

5776840220 CD07-5/2XX-DO-024DC-I-G014

5776845280 CD07-5/2XX-DO-230AC-I-G014

5776845302 CD07-5/2XX-DO-NONE-I-G014

5776870990 CD07-5/2SR-G014-036DC

5776880220 CD07-3/2SR-M014-024DC-MODI

5776880270 CD07-3/2SR-M014-110DC-MODI

5776920002 SPARE PART KIT CD07-5/3CC--30?°C

5776920220 CD07-3/3CC-M014-024DC-MODI

5776920270 CD07-3/3CC-M014-110DC-MODI

5776930220 CD07-2/2SR-M014-024DC-MODI

5776930270 CD07-2/2SR-M014-110DC-MODI

5776930360 CD07-2/2SR-M014-096DC-MODI

5776940220 CD07-3/2SR-M014-024DC-MODI

5776940270 CD07-3/2SR-M014-110DC-MODI

5776940920 CD07-3/2SR-M014-024DC-MODI

5776960220 CD07-5/2XX-SR-024DC-I-G014

5776960970 CD07-5/2SR-G014-110DC-MODI

5776965280 CD07-5/2XX-SR-230AC-I-G014

5776965302 CD07-5/2XX-SR-NONE-I-G014

5776970220 CD07-5/2XX-SR-024DC-I-G014

5776980220 CD07-5/2XX-SR-024DC-I-G014

5776995302 CD07-5/2XX-SR-NONE-I-G014

5777700220 CD07-5/3PC-DO-024DC-I-G014

5777705302 CD07-5/3PC-DO-NONE-I-G014

5777710220 CD07-5/3EC-DO-024DC-I-G014

5777715280 CD07-5/3EC-DO-230AC-I-G014

5777715302 CD07-5/3EC-DO-NONE-I-G014

5777720220 CD07-5/3CC-DO-024DC-I-G014

5777725280 CD07-5/3CC-DO-230AC-I-G014

5777725302 CD07-5/3CC-DO-NONE-I-G014

5777750002 SPARE PART KIT CD07-5/3--25?°C

5777750220 CD07-5/3PC-DO-024DC-I-G014

5777755280 CD07-5/3PC-DO-230AC-I-G014

5777755302 CD07-5/3PC-DO-NONE-I-G014

5777760220 CD07-5/3EC-DO-024DC-I-G014

5777765270 CD07-5/3EC-DO-110AC-I-G014

5777765280 CD07-5/3EC-DO-230AC-I-G014

5777765302 CD07-5/3EC-DO-NONE-I-G014

5777770220 CD07-5/3CC-DO-024DC-I-G014

5777775220 CD07-5/3CC-DO-024AC-I-G014

5777775270 CD07-5/3CC-DO-110AC-I-G014

5777775280 CD07-5/3CC-DO-230AC-I-G014

5777775302 CD07-5/3CC-DO-NONE-I-G014

5777945302 CD07-5/3EC-DO-NONE-E-G014

5777955280 CD07-5/3CC-DO-230AC-E-G014

5777955302 CD07-5/3CC-DO-NONE-E-G014
