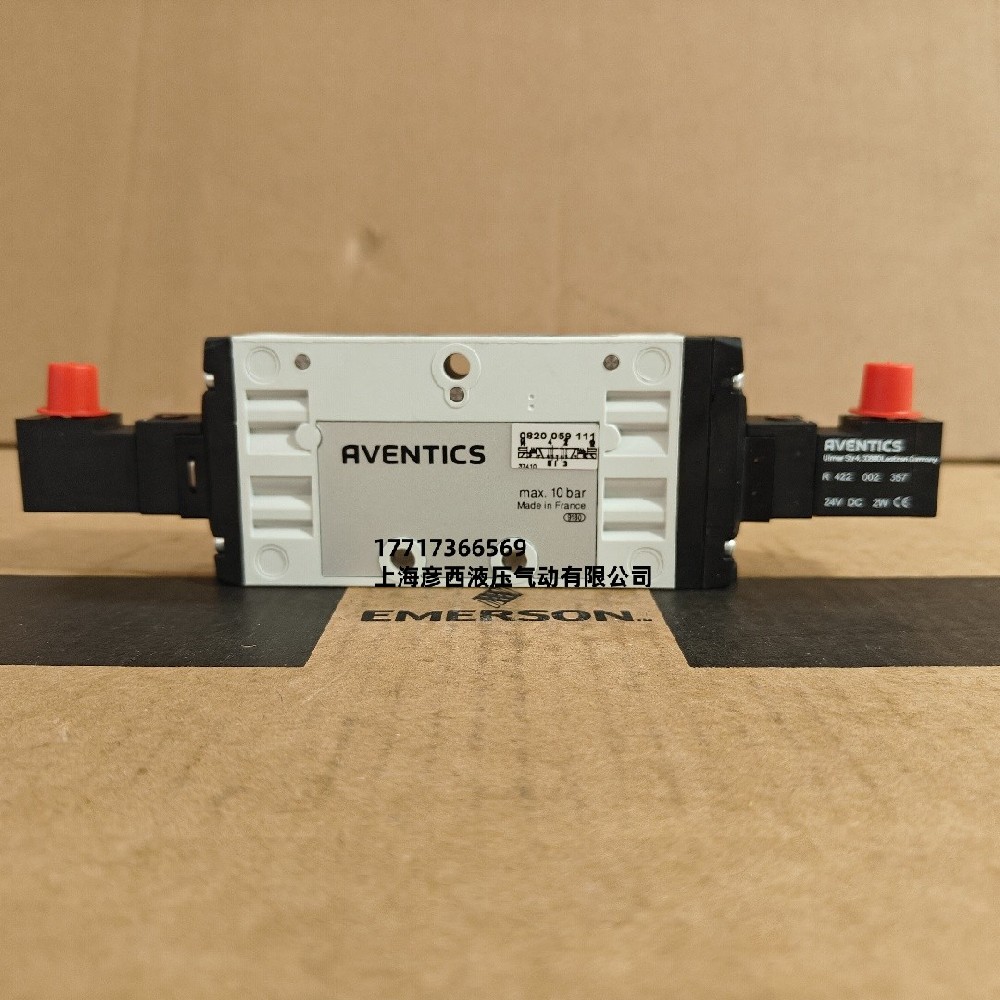

AVENTICS? 三位五通換向閥 0820059111

規格

操作電子

閥功能中位排氣

操作元件雙線圈

手動控制裝置按鈕式

先導內部

額定流量Qn1300 l/min

壓縮空氣 接口 出口G 1/4

最小運行壓力3 bar

最大運行壓力10 bar

額定電壓24 V DC

電壓偏差 DC-10% / +10%

電氣連接 類型多芯插頭

電氣連接 尺寸ISO 15217, C 型

標準化電路接口ISO 15217

帶接口的防護等級IP65

預控閥的寬度15 mm, 軟密封

功率 消耗 DC2 W

暫載率100 %

接通時間型號12 ms

關閉時間型號13 ms

最低環境溫度-10 °C

最高環境溫度50 °C

重量0.278 kg

材料：外殼聚酰胺(尼龍) 增強型玻璃纖維

介質壓縮空氣

Aventics 0820059001   TC15-5/3CC-DO-024DC-I-FORM_C-SGL

Aventics 0820059002   TC15-5/3CC-DO-110AC-I-FORM_C-SGL

Aventics 0820059003   TC15-5/3CC-DO-230AC-I-FORM_C-SGL

Aventics 0820059011   TC15-5/3EC-DO-024DC-I-FORM_C-SGL

Aventics 0820059012   TC15-5/3EC-DO-110AC-I-FORM_C-SGL

Aventics 0820059013   TC15-5/3EC-DO-230AC-I-FORM_C-SGL

Aventics 0820059021   TC15-5/3PC-DO-024DC-I-FORM_C-SGL

Aventics 0820059022   TC15-5/3PC-DO-110AC-I-FORM_C-SGL

Aventics 0820059023   TC15-5/3PC-DO-230AC-I-FORM_C-SGL

Aventics 0820059051   TC15-5/3CC-DO-024DC-E-FORM_C-SGL

Aventics 0820059052   TC15-5/3CC-DO-110AC-E-FORM_C-SGL

Aventics 0820059053   TC15-5/3CC-DO-230AC-E-FORM_C-SGL

Aventics 0820059061   TC15-5/3EC-DO-024DC-E-FORM_C-SGL

Aventics 0820059062   TC15-5/3EC-DO-110AC-E-FORM_C-SGL

Aventics 0820059063   TC15-5/3EC-DO-230AC-E-FORM_C-SGL

Aventics 0820059071   TC15-5/3PC-DO-024DC-E-FORM_C-SGL

Aventics 0820059072   TC15-5/3PC-DO-110AC-E-FORM_C-SGL

Aventics 0820059073   TC15-5/3PC-DO-230AC-E-FORM_C-SGL

Aventics 0820059101   TC15-5/3CC-DO-024DC-I-FORM_C-SGL

Aventics 0820059102   TC15-5/3CC-DO-110AC-I-FORM_C-SGL

Aventics 0820059103   TC15-5/3CC-DO-230AC-I-FORM_C-SGL

Aventics 0820059111   TC15-5/3EC-DO-024DC-I-FORM_C-SGL

Aventics 0820059112   TC15-5/3EC-DO-110AC-I-FORM_C-SGL

Aventics 0820059113   TC15-5/3EC-DO-230AC-I-FORM_C-SGL

Aventics 0820059121   TC15-5/3PC-DO-024DC-I-FORM_C-SGL

Aventics 0820059122   TC15-5/3PC-DO-110AC-I-FORM_C-SGL

Aventics 0820059123   TC15-5/3PC-DO-230AC-I-FORM_C-SGL

Aventics 0820059151   TC15-5/3CC-DO-024DC-E-FORM_C-SGL

Aventics 0820059152   TC15-5/3CC-DO-110AC-E-FORM_C-SGL

Aventics 0820059153   TC15-5/3CC-DO-230AC-E-FORM_C-SGL

Aventics 0820059161   TC15-5/3EC-DO-024DC-E-FORM_C-SGL

Aventics 0820059162   TC15-5/3EC-DO-110AC-E-FORM_C-SGL

Aventics 0820059163   TC15-5/3EC-DO-230AC-E-FORM_C-SGL

Aventics 0820059171   TC15-5/3PC-DO-024DC-E-FORM_C-SGL

Aventics 0820059172   TC15-5/3PC-DO-110AC-E-FORM_C-SGL

Aventics 0820059173   TC15-5/3PC-DO-230AC-E-FORM_C-SGL

Aventics 0820059201   TC15-5/3CC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059211   TC15-5/3EC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059221   TC15-5/3PC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059251   TC15-5/3CC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059261   TC15-5/3EC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059271   TC15-5/3PC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059301   TC15-5/3CC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059311   TC15-5/3EC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059321   TC15-5/3PC-DO-024DC-I-M8X1_4P-SGL

Aventics 0820059351   TC15-5/3CC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059361   TC15-5/3EC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059371   TC15-5/3PC-DO-024DC-E-M8X1_4P-SGL

Aventics 0820059751   TC15-5/3CC-DO-024DC-E-FORM_C-VTS

Aventics 0820059753   TC15-5/3CC-DO-230AC-E-FORM_C-VTS

Aventics 0820059761   TC15-5/3EC-DO-024DC-E-FORM_C-VTS

Aventics 0820059762   TC15-5/3EC-DO-110AC-E-FORM_C-VTS

Aventics 0820059763   TC15-5/3EC-DO-230AC-E-FORM_C-VTS

Aventics 0820059771   TC15-5/3PC-DO-024DC-E-FORM_C-VTS

Aventics 0820059796   TC15-5/3CC-DO-024DC-E-M8X1_4P-VTS

Aventics 0820059797   TC15-5/3EC-DO-024DC-E-M8X1_4P-VTS

Aventics 0820059798   TC15-5/3PC-DO-024DC-E-M8X1_4P-VTS

Aventics 0820059851   TC15-5/3CC-DO-024DC-E-FORM_C-VTS

Aventics 0820059861   TC15-5/3EC-DO-024DC-E-FORM_C-VTS

Aventics 0820059871   TC15-5/3PC-DO-024DC-E-FORM_C-VTS

Aventics 0820059896   TC15-5/3CC-DO-024DC-E-M8X1_4P-VTS

Aventics 0820059897   TC15-5/3EC-DO-024DC-E-M8X1_4P-VTS

Aventics 0820059898   TC15-5/3PC-DO-024DC-E-M8X1_4P-VTS
