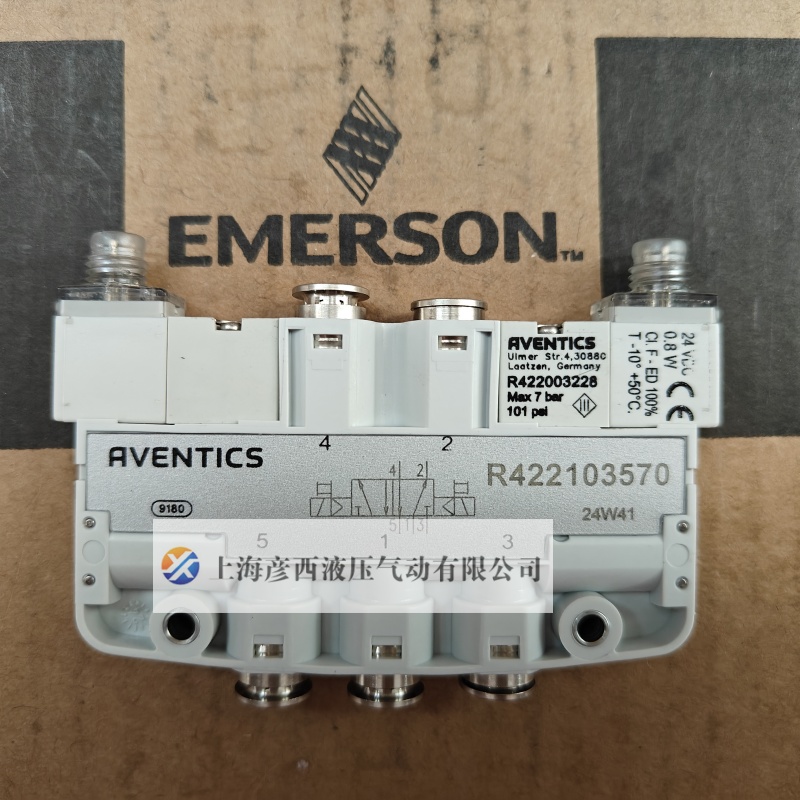

AVENTICS 二位五通換向閥 R422103570

安沃馳R422103570氣動閥上海彥西有現貨銷售，歡迎咨詢。

產品描述

LS04-5/2DS-024DC-AF-I-M8-D6-NEW

R422103570的技術規格：

操作電子

額定流量Qn310 l/min

換向原理5/2

壓縮空氣 接口 出口? 6

最小運行壓力2 bar

最大運行壓力7 bar

工作電壓DC24 V

電壓偏差 DC-10% / +10%

手動控制裝置按鈕式

電氣連接 類型多芯插頭

電氣連接 尺寸M8

電氣連接 極數3-針

操作元件雙線圈

密封原理軟密封

先導內部

閥門結構形式滑閥，正重疊

連接類型管式連接

復位裝置帶彈簧復位

最低環境溫度-10 °C

最高環境溫度50 °C

介質溫度最小值-10 °C

介質溫度最大值50 °C

介質壓縮空氣

顆粒大小 max.5 μm

壓縮空氣中的含油量 最小.,0 mg/m3

安沃馳 LS04 系列輕質滑閥的聚酰胺和鋁材料外殼節省了空間。該閥門適合直接安裝在移動機器和系統部件上

R404054169 CYL-VALVE-UNIT GPC-040-0025-LS04

R404054742 GPC-DA-050-0045-SB-LS04-AF-B101

R415017886 VALVE              LS04,  Z05P1947

R422100555 LS04-5/2SR-024DC-XS-I-MO-D4

R422100556 LS04-5/2SR-024DC-XS-I-M8-D4

R422100557 LS04-5/2SR-024DC-XS-D-MO-D4

R422100558 LS04-5/2SR-024DC-XS-D-M8-D4

R422100559 LS04-5/2SR-024DC-AF-I-MO-D4

R422100560 LS04-5/2SR-024DC-AF-I-MO-D6

R422100561 LS04-5/2SR-024DC-AF-I-M8-D4

R422100562 LS04-5/2SR-024DC-AF-I-M8-D6

R422100563 LS04-5/2SR-024DC-AF-D-MO-D4

R422100564 LS04-5/2SR-024DC-AF-D-MO-D6

R422100565 LS04-5/2SR-024DC-AF-D-M8-D4

R422100566 LS04-5/2SR-024DC-AF-D-M8-D6

R422100567 LS04-5/2DS-024DC-AF-I-MO-D4

R422100568 LS04-5/2DS-024DC-AF-I-MO-D6

R422100569 LS04-5/2DS-024DC-AF-I-M8-D4

R422100570 LS04-5/2DS-024DC-AF-I-M8-D6

R422100571 LS04-3/2OO-024DC-AF-I-MO-D4

R422100572 LS04-3/2OO-024DC-AF-I-MO-D6

R422100573 LS04-3/2OO-024DC-AF-I-M8-D4

R422100574 LS04-3/2OO-024DC-AF-I-M8-D6

R422100576 LS04-3/2OO-024DC-AF-D-MO-D6

R422100577 LS04-3/2OO-024DC-AF-D-M8-D4

R422100578 LS04-3/2OO-024DC-AF-D-M8-D6

R422100579 LS04-3/2CC-024DC-AF-I-MO-D4

R422100580 LS04-3/2CC-024DC-AF-I-MO-D6

R422100581 LS04-3/2CC-024DC-AF-I-M8-D4

R422100582 LS04-3/2CC-024DC-AF-I-M8-D6

R422100583 LS04-3/2CC-024DC-AF-D-MO-D4

R422100584 LS04-3/2CC-024DC-AF-D-MO-D6

R422100585 LS04-3/2CC-024DC-AF-D-M8-D4

R422100586 LS04-3/2CC-024DC-AF-D-M8-D6

R422100587 LS04-3/2CO-024DC-AF-I-MO-D4

R422100588 LS04-3/2CO-024DC-AF-I-MO-D6

R422100589 LS04-3/2CO-024DC-AF-I-M8-D4

R422100590 LS04-3/2CO-024DC-AF-I-M8-D6

R422100591 LS04-3/2CO-024DC-AF-D-MO-D4

R422100592 LS04-3/2CO-024DC-AF-D-MO-D6

R422100593 LS04-3/2CO-024DC-AF-D-M8-D4

R422100594 LS04-3/2CO-024DC-AF-D-M8-D6

R422100840 LS04-5/3CC-024DC-AF-I-MO-D4

R422100841 LS04-5/3CC-024DC-AF-I-MO-D6

R422100842 LS04-5/3CC-024DC-AF-I-M8-D4

R422100843 LS04-5/3CC-024DC-AF-I-M8-D6

R422100844 LS04-5/3CC-024DC-AF-D-MO-D4

R422100845 LS04-5/3CC-024DC-AF-D-MO-D6

R422100846 LS04-5/3CC-024DC-AF-D-M8-D4

R422100847 LS04-5/3CC-024DC-AF-D-M8-D6

R422100889 LS04 VTS LABEL SUPPORT (LOT DE 20)

R422101012 LS04-5/2SR-024DC-AF-I-M8-1/8" INCH

R422101013 LS04-5/2SR-024DC-AF-I-M8-1/4" INCH

R422101018 LS04-5/2DS-024DC-AF-I-M8-1/8" INCH

R422101019 LS04-5/2DS-024DC-AF-I-M8-1/4" INCH

R422101033 LS04-3/2CC-024DC-AF-I-M8-1/4" INCH

R422101047 LS04-5/3CC-024DC-AF-I-M8-1/4" INCH

R422101049 LS04-5/3CC-024DC-AF-D-MO-1/4" INCH

R422103555 LS04-5/2SR-024DC-XS-I-MO-D4-NEW

R422103556 LS04-5/2SR-024DC-XS-I-M8-D4-NEW

R422103557 LS04-5/2SR-024DC-XS-D-MO-D4-NEW

R422103558 LS04-5/2SR-024DC-XS-D-M8-D4-NEW

R422103559 LS04-5/2SR-024DC-AF-I-MO-D4-NEW

R422103560 LS04-5/2SR-024DC-AF-I-MO-D6-NEW

R422103561 LS04-5/2SR-024DC-AF-I-M8-D4-NEW

R422103562 LS04-5/2SR-024DC-AF-I-M8-D6-NEW

R422103563 LS04-5/2SR-024DC-AF-D-MO-D4-NEW

R422103564 LS04-5/2SR-024DC-AF-D-MO-D6-NEW

R422103565 LS04-5/2SR-024DC-AF-D-M8-D4-NEW

R422103566 LS04-5/2SR-024DC-AF-D-M8-D6-NEW

R422103567 LS04-5/2DS-024DC-AF-I-MO-D4-NEW

R422103568 LS04-5/2DS-024DC-AF-I-MO-D6-NEW

R422103569 LS04-5/2DS-024DC-AF-I-M8-D4-NEW

R422103570 LS04-5/2DS-024DC-AF-I-M8-D6-NEW

R422103571 LS04-3/2OO-024DC-AF-I-MO-D4-NEW

R422103572 LS04-3/2OO-024DC-AF-I-MO-D6-NEW

R422103573 LS04-3/2OO-024DC-AF-I-M8-D4-NEW

R422103574 LS04-3/2OO-024DC-AF-I-M8-D6-NEW

R422103575 LS04-3/2OO-024DC-AF-D-MO-D4-NEW

R422103576 LS04-3/2OO-024DC-AF-D-MO-D6-NEW

R422103577 LS04-3/2OO-024DC-AF-D-M8-D4-NEW

R422103578 LS04-3/2OO-024DC-AF-D-M8-D6-NEW

R422103579 LS04-3/2CC-024DC-AF-I-MO-D4-NEW

R422103580 LS04-3/2CC-024DC-AF-I-MO-D6-NEW

R422103581 LS04-3/2CC-024DC-AF-I-M8-D4-NEW

R422103582 LS04-3/2CC-024DC-AF-I-M8-D6-NEW

R422103583 LS04-3/2CC-024DC-AF-D-MO-D4-NEW

R422103584 LS04-3/2CC-024DC-AF-D-MO-D6-NEW

R422103585 LS04-3/2CC-024DC-AF-D-M8-D4-NEW

R422103586 LS04-3/2CC-024DC-AF-D-M8-D6-NEW

R422103587 LS04-3/2CO-024DC-AF-I-MO-D4-NEW

R422103588 LS04-3/2CO-024DC-AF-I-MO-D6-NEW

R422103589 LS04-3/2CO-024DC-AF-I-M8-D4-NEW

R422103590 LS04-3/2CO-024DC-AF-I-M8-D6-NEW

R422103591 LS04-3/2CO-024DC-AF-D-MO-D4-NEW

R422103592 LS04-3/2CO-024DC-AF-D-MO-D6-NEW

R422103593 LS04-3/2CO-024DC-AF-D-M8-D4-NEW

R422103594 LS04-3/2CO-024DC-AF-D-M8-D6-NEW

R422103840 LS04-5/3CC-024DC-AF-I-MO-D4-NEW

R422103841 LS04-5/3CC-024DC-AF-I-MO-D-NEW

R422103842 LS04-5/3CC-024DC-AF-I-M8-D4-NEW

R422103843 LS04-5/3CC-024DC-AF-I-M8-D6-NEW

R422103844 LS04-5/3CC-024DC-AF-D-MO-D4-NEW

R422103845 LS04-5/3CC-024DC-AF-D-MO-D6-NEW

R422103846 LS04-5/3CC-024DC-AF-D-M8-D4-NEW

R422103847 LS04-5/3CC-024DC-AF-D-M8-D6-NEW

R491000952 STEUERTAFEL        PNPAN-LS04-XS-RG1-589
