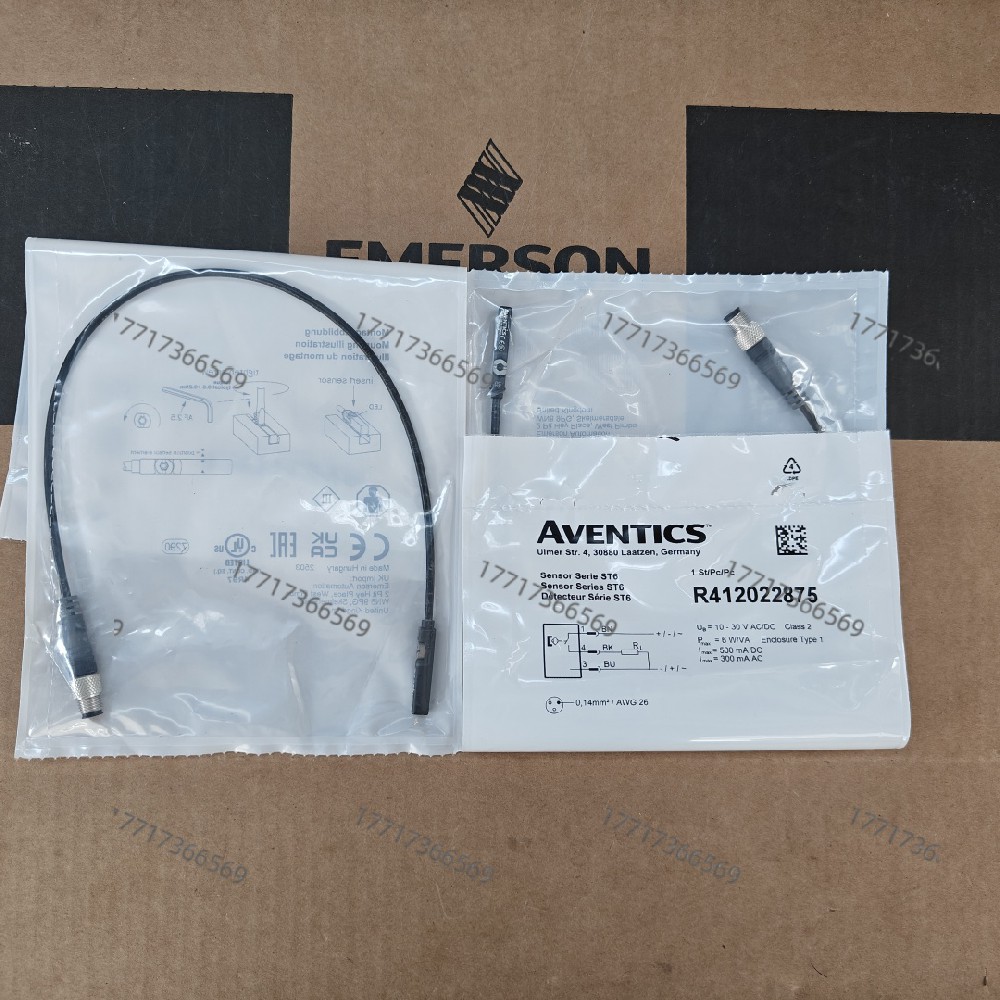

AVENTICS - R412022875 - 傳感器  (ST6-R3-M08V-030)

規格

直接安裝用于系列PRA, PRE, CCI, KPZ, SSI, GPC, CVI

間接安裝用于系列TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR

凹槽寬度6 mm T-溝槽

電纜帶電纜

連接方式型簧片型

滯環≥ 0,2 mT

開關容量3 針管道：最大  6 W

合格證書CE認證, cULus, RoHS, UL (Underwriters Laboratories)

防護等級IP65, IP67

最低環境溫度-30 °C

最高環境溫度80 °C

最大的電壓降I*Rs

換向電流(開關電流)，直流電，最大值.0.3 A

換向電流(開關電流)，交流電，最大值.0.5 A

工作頻率400 Hz

開關點精度±0,1 mT

開關邏輯電路常開

發光二極管狀態顯示黃色

電氣連接 2, 螺紋尺寸多芯插頭, M8x1

電氣連接 2, 極數3-針

最小工作電壓 DC10 V DC

最大工作電壓 DC30 V DC

最小工作電壓 AC10 V AC

工作電壓 AC，最大值30 V AC

防短路能力反極性保護
