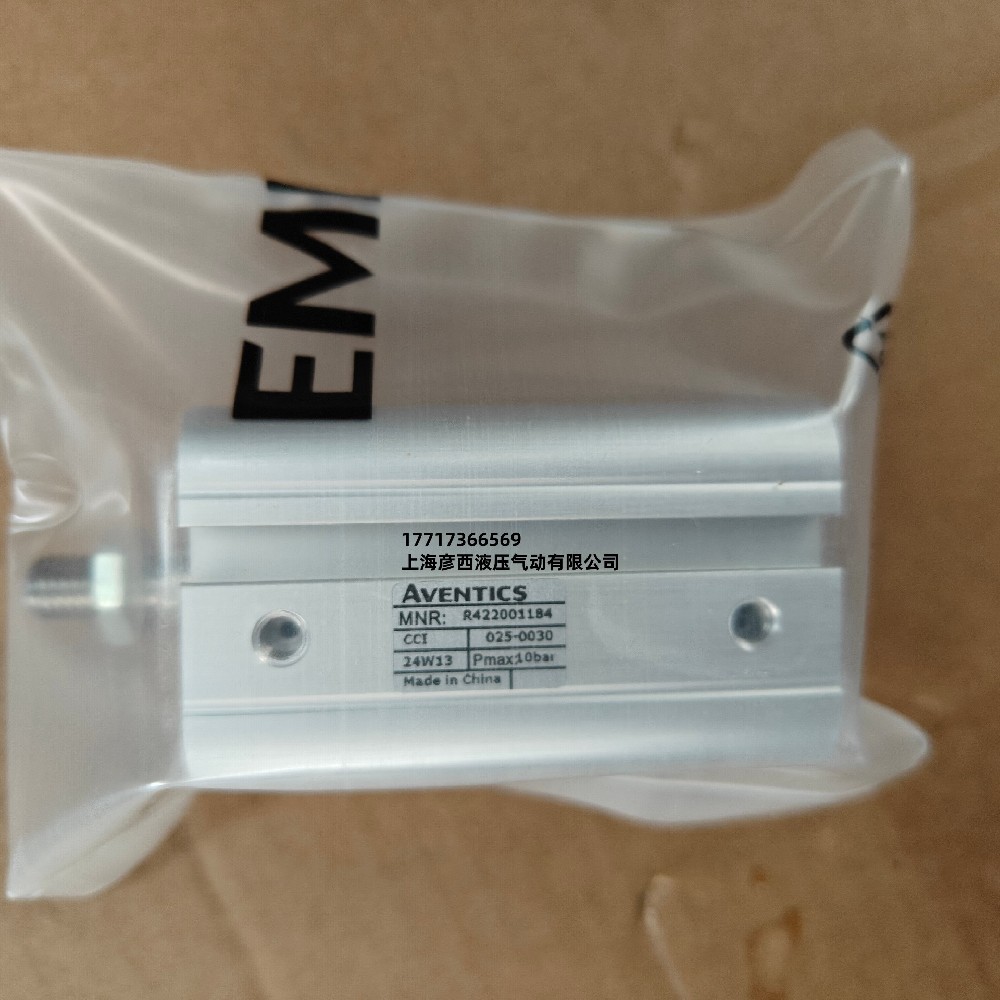

AVENTICS 緊湊型氣缸系列 CCI R422001184

規格

標準ISO 21287

活塞- ?25 mm

行程30 mm

接口M5

實用原則雙作用式

緩沖elastické tlumení

磁性銷釘Píst s magnetem

環境要求工業標準, ATEX 中可選

活塞連桿螺紋 - 類型外螺紋

活塞桿螺紋M8x1,25

活塞桿單的

防塵圈標準工業防塵刮環

確定活塞推力的壓力6,3 bar

縮回運動的活塞力260 N

伸出運動的活塞力309 N

最低環境溫度-20 °C

最高環境溫度80 °C

最小運行壓力1 bar

最大運行壓力10 bar

沖撞能量0.3 J

重量 0 mm行程0.149 kg

重量 +10 mm行程0.026 kg

最大行程300 mm

介質壓縮空氣

介質溫度最小值-20 °C

R422001100 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0080

R422001103 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0100

R422001104 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0100

R422001105 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0100

R422001106 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0100

R422001107 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0100

R422001108 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0100

R422001109 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0100

R422001110 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0100

R422001112 CCI-DA-016-0125-004122411000020000000000 Compact cylinder ISO 21287, Series CCI DIAMETER=16mm STROKE=125mm double-acting CUSHIONNING elastic

R422001114 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0125

R422001115 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0125

R422001116 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0125

R422001117 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0125

R422001118 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0125

R422001119 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0125

R422001120 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0125

R422001122 CCI-DA-016-0150-004122411000020000000000 Compact cylinder ISO 21287, Series CCI DIAMETER=16mm STROKE=150mm double-acting CUSHIONNING elastic

R422001123 CCI-DA-020-0150-004122411000020000000000 Compact cylinder ISO 21287, Series CCI DIAMETER=20mm STROKE=150mm double-acting CUSHIONNING elastic

R422001124 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0150

R422001125 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0150

R422001126 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0150

R422001127 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0150

R422001128 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0150

R422001129 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0150

R422001130 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0150

R422001132 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0005

R422001133 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0005

R422001134 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0005

R422001135 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0005

R422001136 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0005

R422001137 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0005

R422001138 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0005

R422001140 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0005

R422001142 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0010

R422001143 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0010

R422001144 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0010

R422001145 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0010

R422001146 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0010

R422001147 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0010

R422001148 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0010

R422001149 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0010

R422001150 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0010

R422001152 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0015

R422001153 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0015

R422001154 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0015

R422001155 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0015

R422001156 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0015

R422001157 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0015

R422001158 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0015

R422001159 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0015

R422001160 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0015

R422001162 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0020

R422001163 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0020

R422001164 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0020

R422001165 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0020

R422001166 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0020

R422001167 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0020

R422001168 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0020

R422001169 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0020

R422001170 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0020

R422001172 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0025

R422001173 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0025

R422001174 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0025

R422001175 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0025

R422001176 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0025

R422001177 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0025

R422001178 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0025

R422001179 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0025

R422001180 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0025

R422001182 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0030

R422001183 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0030

R422001184 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0030

R422001185 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0030

R422001186 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0030

R422001187 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0030

R422001188 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0030

R422001189 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0030

R422001190 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 100, Stroke 0030

R422001192 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 016, Stroke 0040

R422001193 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 020, Stroke 0040

R422001194 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 025, Stroke 0040

R422001195 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 032, Stroke 0040

R422001196 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 040, Stroke 0040

R422001197 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 050, Stroke 0040

R422001198 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 063, Stroke 0040

R422001199 COMPACT CYLINDER, Series CCI, Functional principle double-acting, Piston diameter 080, Stroke 0040
