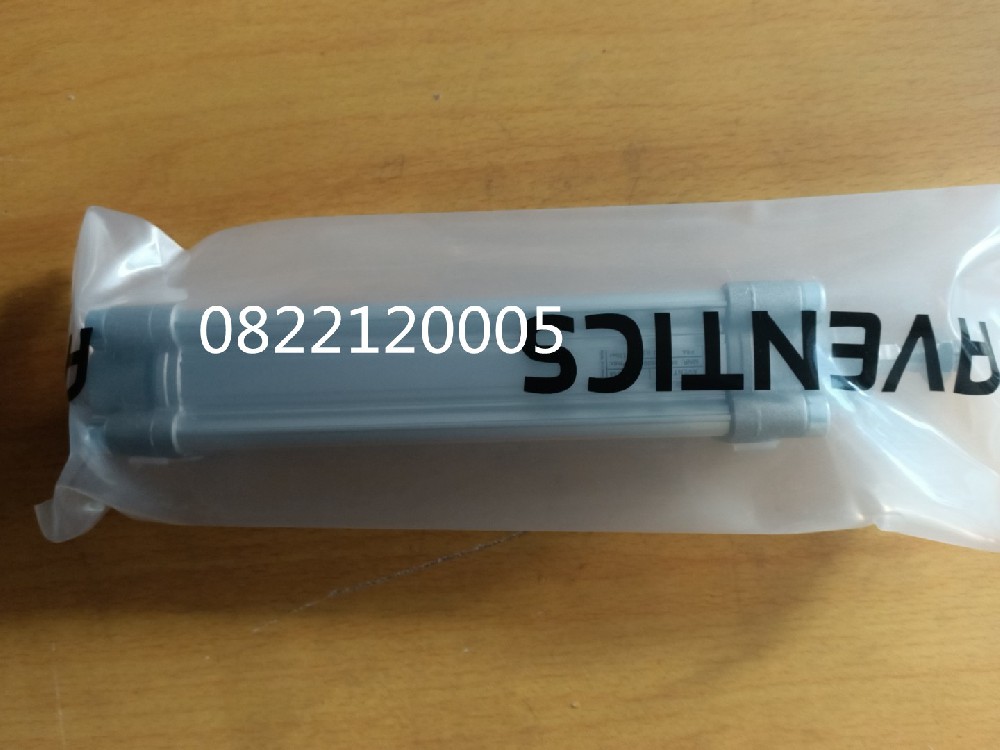

AVENTICS PRA 系列 0822120005型材氣缸

規格

標準ISO 15552

活塞- ?32 mm

行程125 mm

實用原則雙作用式

緩沖pneumaticky nastavitelné tlumení

磁性銷釘Píst s magnetem

環境要求工業標準, ATEX 中可選

活塞桿單的

防塵圈標準工業防塵刮環

確定活塞推力的壓力6,3 bar

縮回運動的活塞力435 N

伸出運動的活塞力505 N

最低環境溫度-20 °C

最高環境溫度80 °C

最小運行壓力1.5 bar

最大運行壓力10 bar

接口G 1/8

活塞桿螺紋M10x1,25

緩沖長度16.5 mm

緩沖能量4.8 J

重量 0 mm行程0.5 kg

重量 +10 mm行程0.022 kg

最大行程1600 mm

介質壓縮空氣

介質溫度最小值-20 °C
