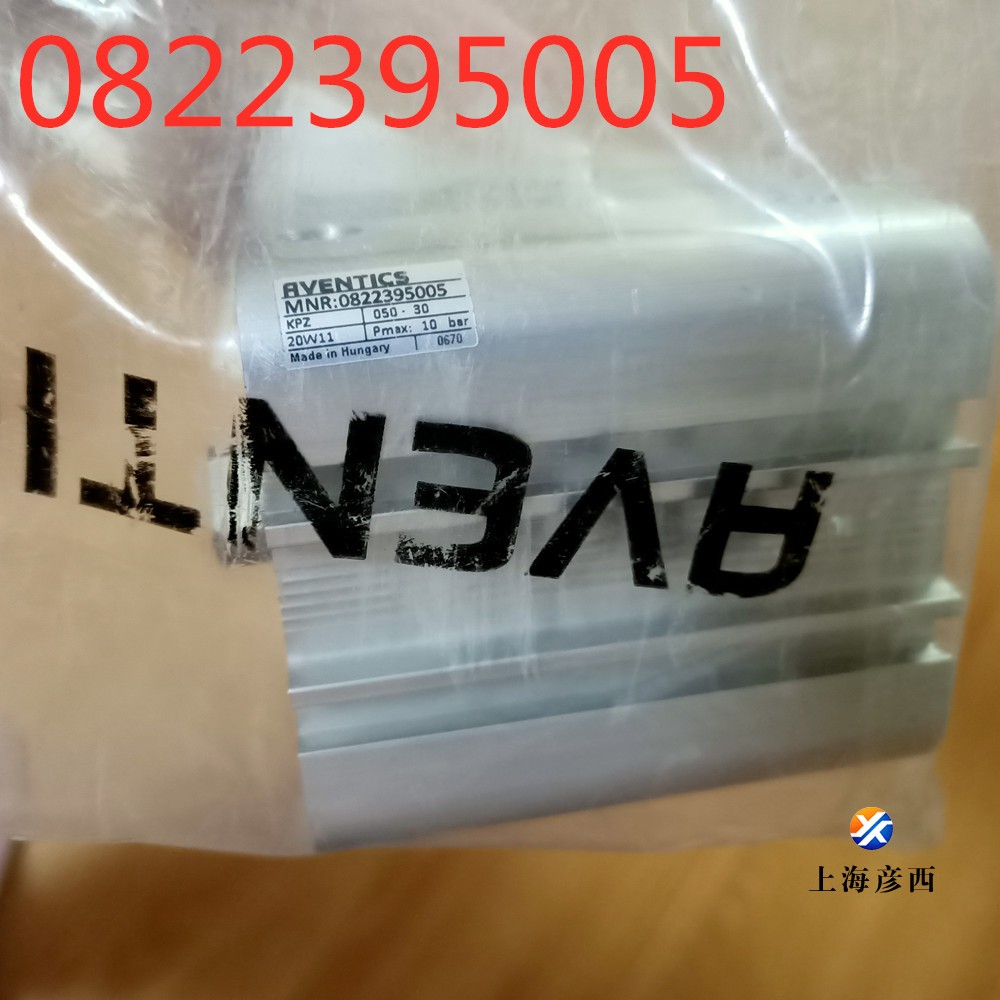

0822395005 KPZ-DA-032-0030-004122411000020-B
NFE 49004
? 50 mm
接口 G 1/8
雙作用式
帶磁性活塞
緩沖 彈性
活塞桿 內螺紋
活塞桿 可選連續的
ATEX 中可選
可選耐熱的
0822395005的技術信息：
| 活塞連桿改裝 | 可選連續的 |
| 實用原則 | 雙作用式 |
| 緩沖 | 彈性 |
| 磁性銷釘 | 帶磁性活塞 |
| 活塞直徑 | 50 mm |
| 活塞桿螺紋 | M10 |
| 標準化 | NFE 49004 |
| 行程 | 30 mm |
| 密封件材料 | 聚氨酯 |
| 防塵圈 | 聚氨酯 |
| ATEX 中可選 | |
| 壓縮空氣連接 | G 1/8 |
| 壓縮空氣接口型號 | 內螺紋 |
| 抗溫性 | 可選耐熱的 |
| 標準 | NFE 49004 |
| 合格證書 | ATEX 中可選 |
| 壓縮空氣連接 | 內螺紋 |
| 最低 / 最高環境溫度 | -20 ... 80 °C |
| 介質溫度范圍 | -20 ... 80 °C |
| 介質 | 壓縮空氣 |
| 顆粒大小 max. | 50 μm |
| 壓縮空氣中的含油量 | 0 ... 5 mg/m3 |
| 確定活塞推力的壓力 | 6.3 bar |
0822393000 KPZ-DA-032-0005-004122411000020-B
0822393001 KPZ-DA-032-0010-004122411000020-B
0822393002 KPZ-DA-032-0015-004122411000020-B
0822393003 KPZ-DA-032-0020-004122411000020-B
0822393004 KPZ-DA-032-0025-004122411000020-B
0822393005 KPZ-DA-032-0030-004122411000020-B
0822393006 KPZ-DA-032-0040-004122411000020-B
0822393007 KPZ-DA-032-0050-004122411000020-B
0822393008 KPZ-DA-032-0060-004122411000020-B
0822393009 KPZ-DA-032-0080-004122411000020-B
0822393010 KPZ-DA-032-0100-004122411000020-B
0822393012 KPZ-DA-032-0155-0041224110000200000000-B
0822393013 KPZ-DA-032-0250-0041224110000200000000-B
0822393014 KPZ-DA-032-0125-0041224110000200000000-B
0822393015 KPZ-DA-032-0055-0041224110000200000000-B
0822393016 KPZ-DA-032-0170-0041224110000200000000-B
0822393017 KPZ-DA-032-0300-0041224110000200000000-B
0822393018 KPZ-DA-032-0140-0041224110000200000000-B
0822393021 KPZ-DA-032-0200-0041224110000200000000-B
0822393022 KPZ-DA-032-0270-0041224110000200000000-B
0822393023 KPZ-DA-032-0225-0041224110000200000000-B
0822393024 KPZ-DA-032-0160-0041224110000200000000-B
0822393025 KPZ-DA-032-0110-0041224110000200000000-B
0822393026 KPZ-DA-032-0150-0041224110000200000000-B
0822393027 KPZ-DA-032-0130-0041224110000200000000-B
0822393030 KPZ-DA-032-0120-0041224110000200000000-B
0822393031 KPZ-DA-032-0070-0041224110000200000000-B
0822393034 KPZ-DA-032-0035-0041224110000200000000-B
0822393035 KPZ-DA-032-0180-0041224110000200000000-B
0822393036 KPZ-DA-032-0240-0041224110000200000000-B
0822393038 KPZ-DA-032-0085-0041224110000200000000-B
0822393101 KPZ-DA-032-0135-0041224110000200000000-B
0822393102 KPZ-DA-032-0075-0041224110000200000000-B
0822393104 KPZ-DA-032-0280-0041224110000200000000-B
0822393105 KPZ-DA-032-0090-0041224110000200000000-B
0822393200 KPZ-DA-032-0005-004122411000000-B
0822393201 KPZ-DA-032-0010-004122411000000-B
0822393202 KPZ-DA-032-0015-004122411000000-B
0822393203 KPZ-DA-032-0020-004122411000000-B
0822393204 KPZ-DA-032-0025-004122411000000-B
0822393205 KPZ-DA-032-0030-004122411000000-B
0822393206 KPZ-DA-032-0040-004122411000000-B
0822393207 KPZ-DA-032-0050-004122411000000-B
0822393208 KPZ-DA-032-0060-004122411000000-B
0822393209 KPZ-DA-032-0080-004122411000000-B
0822393210 KPZ-DA-032-0100-004122411000000-B
0822393212 KPZ-DA-032-0300-0041224110000000000022-B
0822393213 KPZ-DA-032-0200-0041224110000000000022-B
0822393216 KPZ-DA-032-0075-0041224110000000000022-B
0822393217 KPZ-DA-032-0125-0041224110000000000022-B
0822393218 KPZ-DA-032-0160-0041224110000000000022-B
0822393220 KPZ-DA-032-0090-0041224110000000000022-B
0822393221 KPZ-DA-032-0150-0041224110000000000022-B
0822393222 KPZ-DA-032-0180-0041224110000000000022-B
0822393224 KPZ-DA-032-0120-0041224110000000000022-B
0822393226 KPZ-DA-032-0250-0041224110000000000022-B
0822393227 KPZ-DA-032-0070-0041224110000000000022-B
0822393251 KPZ-DA-032-0045-0041224110000000000022-B
0822393252 KPZ-DA-032-0220-0041224110000000000022-B
0822393255 KPZ-DA-032-0016-0041224110000000000022-B
0822393257 KPZ-DA-032-0110-0041224110000000000022-B
0822393258 KPZ-DA-032-0230-0041224110000000000022-B
0822393259 KPZ-DA-032-0255-0041224110000000000022-B
0822393260 KPZ-DA-032-0012-0041224110000000000022-B
0822393261 KPZ-DA-032-0130-0041224110000000000022-B
0822393262 KPZ-DA-032-0170-0041224110000000000022-B
0822393263 KPZ-DA-032-0065-0041224110000000000022-B
0822393301 KPZ-DA-032-0010-0041264110000000000022-B
0822393302 KPZ-DA-032-0015-0041264110000000000022-B
0822393303 KPZ-DA-032-0020-0041264110000000000022-B
0822393304 KPZ-DA-032-0025-0041264110000000000022-B
0822393307 KPZ-DA-032-0050-0041264110000000000022-B
0822393401 KPZ-DA-032-0010-0041224310000200000000-B
0822393402 KPZ-DA-032-0015-0041224310000200000000-B
0822393403 KPZ-DA-032-0020-0041224310000200000000-B
0822393404 KPZ-DA-032-0025-0041224310000200000000-B
0822393405 KPZ-DA-032-0030-0041224310000200000000-B
0822393406 KPZ-DA-032-0040-0041224310000200000000-B
0822393407 KPZ-DA-032-0050-0041224310000200000000-B
0822393409 KPZ-DA-032-0080-0041224310000200000000-B
0822393410 KPZ-DA-032-0100-0041224310000200000000-B
0822393500 KPZ-DA-032-0005-0041234110000200000000-B
0822393501 KPZ-DA-032-0010-0041234110000200000000-B
0822393502 KPZ-DA-032-0015-0041234110000200000000-B
0822393503 KPZ-DA-032-0020-0041234110000200000000-B
0822393504 KPZ-DA-032-0025-0041234110000200000000-B
0822393507 KPZ-DA-032-0050-0041234110000200000000-B
0822393508 KPZ-DA-032-0060-0041234110000200000000-B
0822393509 KPZ-DA-032-0040-0041234110000200000000-B
0822393511 KPZ-DA-032-0100-0041234110000200000000-B
0822393512 KPZ-DA-032-0030-0041234110000200000000-B
0822393513 KPZ-DA-032-0080-0041234110000200000000-B
0822393514 KPZ-DA-032-0075-0041234110000200000000-B
0822393517 KPZ-DA-032-0035-0041234110000200000000-B
0822393600 KPZ-DA-032-0005-007122411000020-B
0822393601 KPZ-DA-032-0010-007122411000020-B
0822393602 KPZ-DA-032-0015-007122411000020-B
0822393603 KPZ-DA-032-0020-007122411000020-B
0822393604 KPZ-DA-032-0025-007122411000020-B
0822393605 KPZ-DA-032-0030-007122411000020-B
0822393606 KPZ-DA-032-0040-007122411000020-B
0822393607 KPZ-DA-032-0050-007122411000020-B
0822393608 KPZ-DA-032-0060-007122411000020-B
0822393609 KPZ-DA-032-0080-007122411000020-B
0822393610 KPZ-DA-032-0100-007122411000020-B
0822393612 KPZ-DA-032-0120-0071224110000200000000-B
0822393614 KPZ-DA-032-0125-0071224110000200000000-B
0822393615 KPZ-DA-032-0150-0071224110000200000000-B
0822393616 KPZ-DA-032-0200-0071224110000200000000-B
0822393617 KPZ-DA-032-0180-0071224110000200000000-B
0822393618 KPZ-DA-032-0110-0071224110000200000000-B
0822393619 KPZ-DA-032-0140-0071224110000200000000-B
0822393620 KPZ-DA-032-0160-0071224110000200000000-B
0822393621 KPZ-DA-032-0250-0071224110000200000000-B
0822393626 KPZ-DA-032-0300-0071224110000200000000-B
0822393630 KPZ-DA-032-0035-0071224110000200000000-B
0822393631 KPZ-DA-032-0135-0071224110000200000000-B
0822393650 KPZ-DA-032-0102-0071224110000200000000-B
0822393700 KPZ-DA-032-0005-0041234110000000000022-B
0822393701 KPZ-DA-032-0010-0041234110000000000022-B
0822393702 KPZ-DA-032-0015-0041234110000000000022-B
0822393704 KPZ-DA-032-0025-0041234110000000000022-B
0822393706 KPZ-DA-032-0040-0041234110000000000022-B
0822393707 KPZ-DA-032-0030-0041234110000000000022-B
0822393708 KPZ-DA-032-0050-0041234110000000000022-B
0822393710 KPZ-DA-032-0035-0041234110000000000022-B
0822393750 KPZ-DA-032-0060-0041234110000000000022-B
0822393752 KPZ-DA-032-0080-0041234110000000000022-B
0822393802 KPZ-DA-032-0050-0041224110000200000000-B
0822393803 KPZ-DA-032-0080-0041224110000200000000-B
0822393900 KPZ-DA-032-0005-0081224110000200000000-B
0822393901 KPZ-DA-032-0010-0081224110000200000000-B
0822393902 KPZ-DA-032-0015-0081224110000200000000-B
0822393903 KPZ-DA-032-0020-0081224110000200000000-B
0822393904 KPZ-DA-032-0025-0081224110000200000000-B
0822393905 KPZ-DA-032-0030-0081224110000200000000-B
0822393906 KPZ-DA-032-0040-0081224110000200000000-B
0822393907 KPZ-DA-032-0050-0081224110000200000000-B
0822393908 KPZ-DA-032-0060-0081224110000200000000-B
0822393909 KPZ-DA-032-0080-0081224110000200000000-B
0822393910 KPZ-DA-032-0100-0081224110000200000000-B
